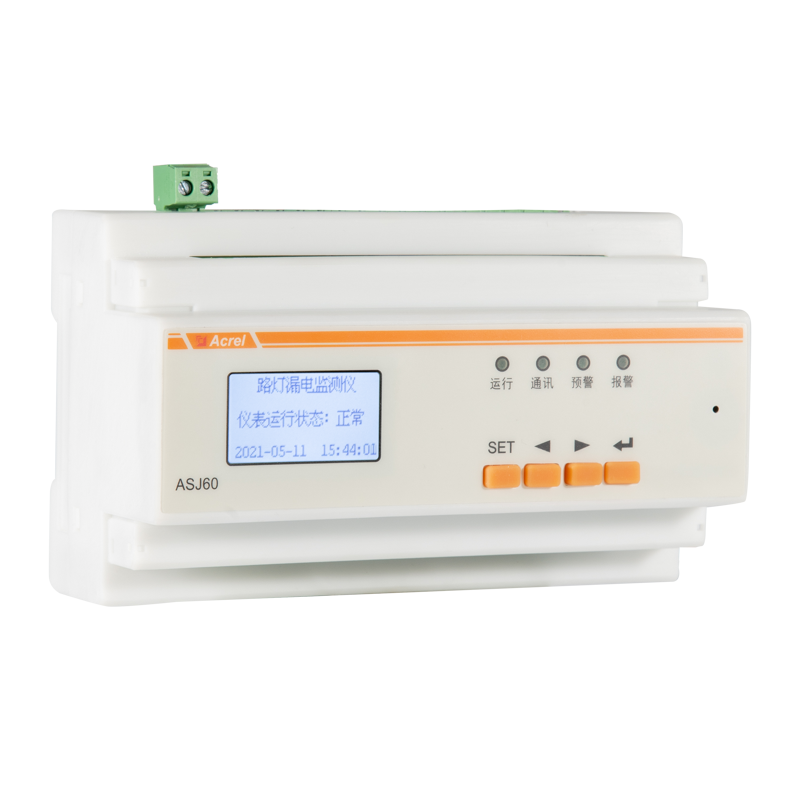

ASJ60-LD16A Residual Current Monitor
● Monitoring and display residual current of TN-S,TT distribution lines;
●16 measuring channels per devices for residual current measurement;
●Adjustable alarm value with ranges: 1mA…30A;
●1 relay for waterlog, 16 relays for 16 channels residual current monitor
●2 DI for waterlog and other switch status;
ASJ60-LD16A residual current monitor is suitable for distribution lines of 400V a.c. and below, to monitoring residual current as a residual current electrical fire monitoring detector, or combined with low-voltage circuit breaker or AC contactor to be residual current devices to protect the electrical circuit from ground fault. Prevent equipment damage and electrical fire accident caused by ground fault current, or provide indirect contact protection against personal electric shock. ASJ60-LD16A can be used in distribution boxes of petrochemical, industrial plants, large public buildings, kindergartens, nursing homes and other places, as well as in distribution boxes of street lamps, courtyard lamps and landscape lamps for leakage or grounding fault monitoring.
● Subway; ● Large gymnasium; ● Power plant; ● Petrochemical industry;
● Pharmaceutical industry; ● Mining industry; ● Photovoltaic new energy
|
Parameters |
指标 |
|
|
Power supply |
Voltage range |
AC/DC85V~265V |
|
Power consumption |
≤10VA |
|
|
Input |
number of measuring channels(per device) |
16 channels |
|
Range of Residual current measurement |
1mA~30A |
|
|
Rated residual operating current I△n |
1 mA ~30A continuous adjustable |
|
|
operating characteristic |
AC, pulsed DC |
|
|
frequency |
50Hz±5Hz |
|
|
Operating delay |
adjustable from 0s to 10s |
|
|
Switch status input |
2DI with passive dry node input |
|
|
Output |
Output mode |
1alarm relay for waterlog(N/C or N/O) 16alarm relays for residual current monitor(N/C or N/O) |
|
Contact capacity |
AC 250V/3A DC 30V/3A |
|
|
Automatic reclosing |
frequency |
0-99 adjustable continuously |
|
Interval time |
0-999s adjustable continuously |
|
|
communication |
Mode 1 |
RS485 interface with Modbus-RTU protocol |
|
Mode 2（optional） |
4G wireless communication |
|
|
Environment |
Temperature |
Operating temerature：-10℃~55℃ Storage temperature：-30℃~70℃ |
|
Humidity |
≤95%, No condensation |
|
|
Altitude |
≤2500m |
|
|
Mean time between failures |
≥50000 hours |
|
